CNC PEEK Semiconductor Wafer Transfer Fork for Automated Handling Equipment

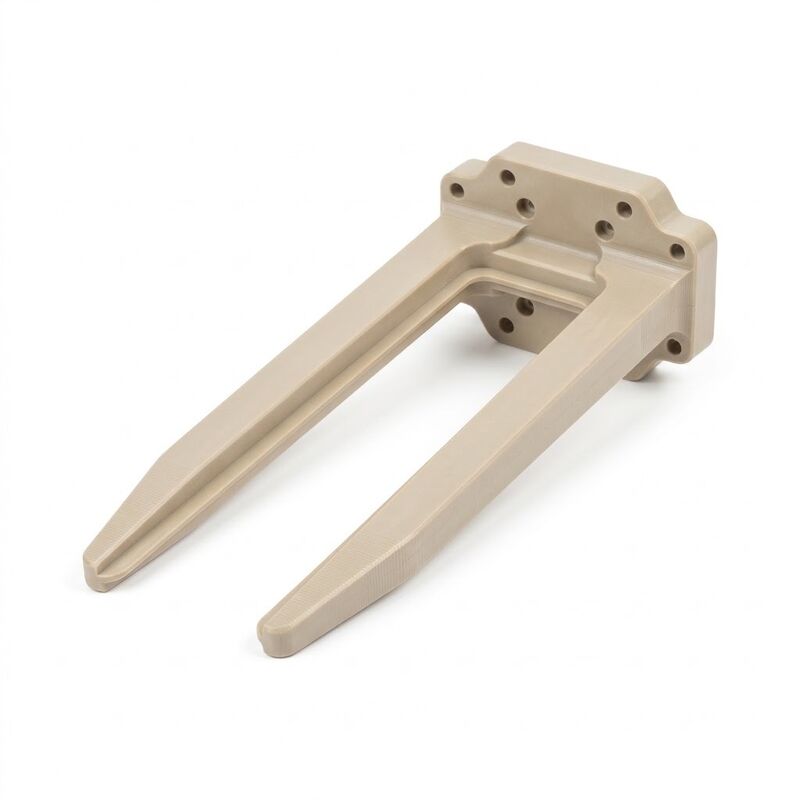

This custom CNC machined PEEK wafer transfer fork is designed for automated semiconductor handling systems that move silicon wafers between cassette load ports, prealignment stations and inspection equipment. The fork tines support designated wafer contact areas while the rear mounting interface connects to the equipment’s robotic handling mechanism.
PEEK offers a lightweight engineering polymer option with electrical insulation and good machinability. The exact PEEK grade should be selected according to the required chemical compatibility, operating temperature, static control and wafer contact requirements.
Before production, confirm the wafer diameter, support point locations, fork tip spacing, mounting hole pattern, flatness and required clearance to nearby equipment. For cleanroom applications, the polymer grade, cleaning process and acceptable particle contamination requirements should also be defined before release.

For more custom precision machined semiconductor handling components, explore our CNC Machining Services

For components with complex multi face features and precision interfaces, see our CNC Multi-Axis Machining.
