CNC Aluminum UAV Winch Drum for Tethered Inspection Systems
Product Details
Place of Origin: China
Brand Name: Shiye
Certification: ISO9001:2015
Model Number: Custom
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: According to the drawings
Packaging Details: Accept buyer's request for customized packaging
Delivery Time: 7-14 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 10000Pcs/ Month
Application: |
UAV Inspection Systems, Sensor Deployment Mechanisms |
Material: |
Aluminum Alloy 6061 T6 Or Grade Specified On Drawing |
Tolerance: |
±0.01mm |
Processing: |
CNC Turning, Groove Machining, Milling, Bore Machining |
Surface Treatment: |
Anodizing Or Hard Anodizing As Specified |
Quality Control: |
Shaft Bore Measurement, Groove Profile Inspection, Flange Runout Verification, Critical Dimension Inspection |
Application: |
UAV Inspection Systems, Sensor Deployment Mechanisms |
Material: |
Aluminum Alloy 6061 T6 Or Grade Specified On Drawing |
Tolerance: |
±0.01mm |
Processing: |
CNC Turning, Groove Machining, Milling, Bore Machining |
Surface Treatment: |
Anodizing Or Hard Anodizing As Specified |
Quality Control: |
Shaft Bore Measurement, Groove Profile Inspection, Flange Runout Verification, Critical Dimension Inspection |

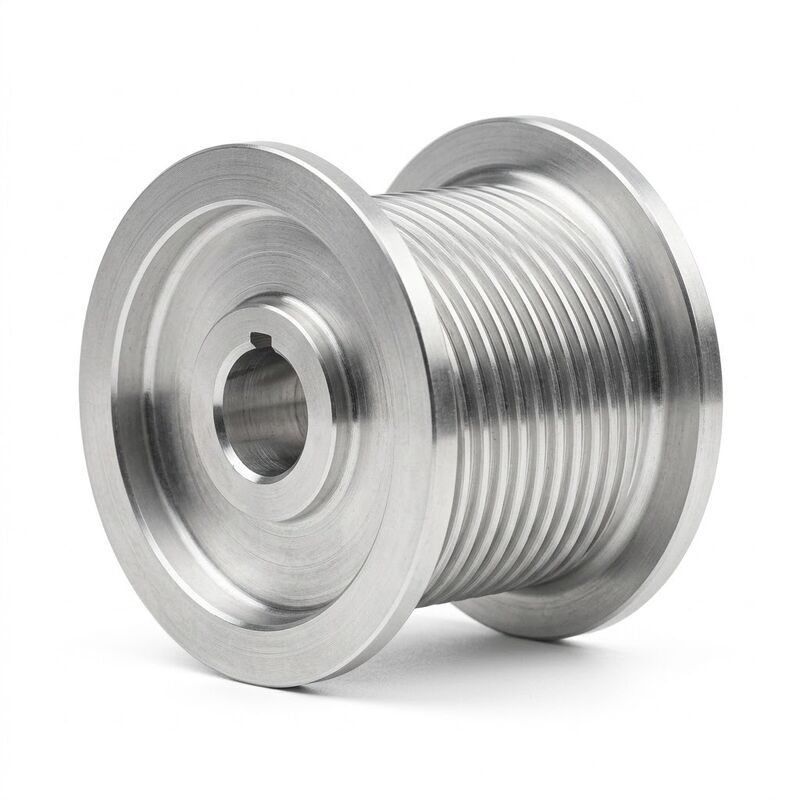

This custom CNC machined aluminum winch drum is designed for compact cable winding mechanisms used to lower inspection probes or lightweight sensors from UAV support systems. The helical groove guides the cable across the barrel, while the flanges help prevent it from slipping off the sides during winding.
Aluminum alloy provides a lightweight option for compact rotating components. The barrel diameter, groove pitch and surface finish should be matched to the cable diameter, minimum bend radius and required winding capacity.
Before production, confirm the shaft interface, cable specification, maximum working load, winding direction and available installation space. Critical checks include shaft bore dimensions, groove geometry, flange runout and the intended cable clearance.
For more custom UAV mechanism components, explore our CNC Drone Parts
For cylindrical parts with precision grooves and complex machined profiles, see our CNC Multi-Axis Machining.
Need a Similar Custom Part?
Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
-
