CNC POM Bottle Indexing Star Wheel for Automated Filling Lines
Product Details
Place of Origin: China
Brand Name: Shiye
Certification: ISO9001:2015
Model Number: Custom
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: According to the drawings
Packaging Details: Accept buyer's request for customized packaging
Delivery Time: 7-14 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 10000Pcs/ Month
Application: |
Bottle Filling Lines, Capping And Labeling Machines |
Material: |
POM Acetal, Grade And Color Per Drawing |
Tolerance: |
±0.01mm |
Processing: |
CNC Milling, Profile Machining, Bore Machining |
Surface Treatment: |
Deburring, Edge Finishing |
Quality Control: |
Pocket Profile Measurement, Bore Inspection, Dimensional Verification |
Application: |
Bottle Filling Lines, Capping And Labeling Machines |
Material: |
POM Acetal, Grade And Color Per Drawing |
Tolerance: |
±0.01mm |
Processing: |
CNC Milling, Profile Machining, Bore Machining |
Surface Treatment: |
Deburring, Edge Finishing |
Quality Control: |
Pocket Profile Measurement, Bore Inspection, Dimensional Verification |

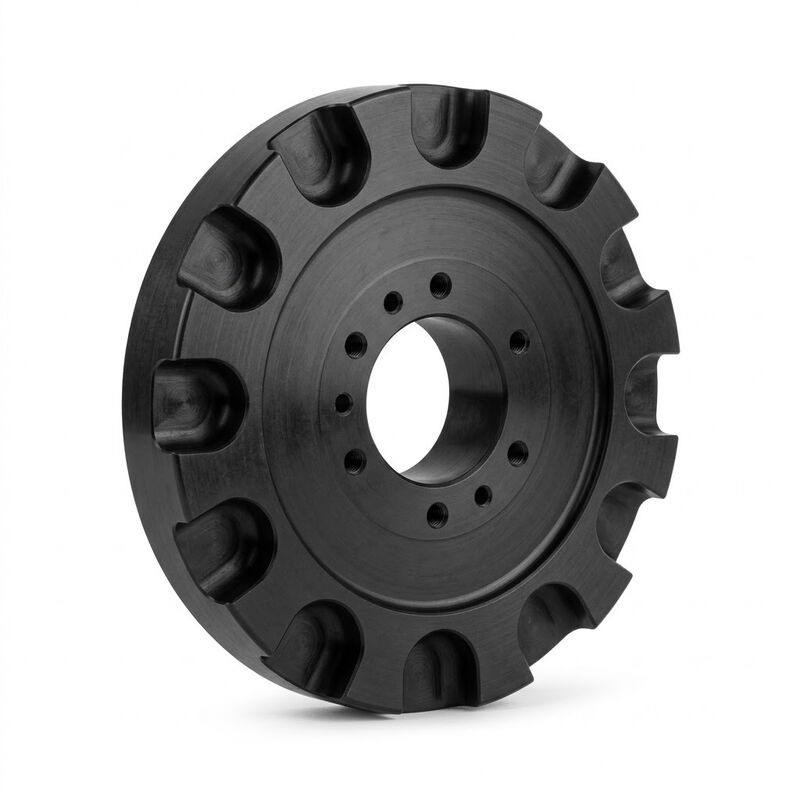

This custom CNC machined POM indexing star wheel is designed for rotary filling and labeling lines, where the bottle pockets guide containers between the conveyor and individual processing stations. Its pocket contour, pitch and center bore must match the bottle diameter, line layout and machine mounting interface to prevent misalignment during transfer.
POM acetal offers good machinability, dimensional stability and sliding properties for many packaging applications. The required grade should be confirmed if the wheel contacts food or must withstand specific cleaning chemicals.
For replacement or new equipment projects, provide the bottle drawing, pocket count, rotation direction, mounting pattern and operating speed so the profile can be manufactured for the intended line.
For more repeat production plastic and metal components, explore our Copper CNC Machining.
For custom bottle pocket profiles and mounting features, see our Custom CNC Machining Services.
Need a Similar Custom Part?
Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
-
