Home > Products > Custom Sheet Metal Fabrication > Custom 5052 Aluminum Battery Tray Sheet Metal Fabricated Industrial Power Component
Product Details
Highlight:
Application:
AGV/AMR Battery Modules, Industrial Backup Power
Material:
5052-H32 Aluminum Sheet
Tolerance:
±0.01 Mm
Processing:
CNC Laser Cutting, Press-Brake Forming, Assembly Fastening
Surface Treatment:
Brushed Finish, Powder Coating As Specified
Quality Control:
Cut-Feature Measurement, Hole-Pattern Verification, Bend-Dimension Inspection
Application:
AGV/AMR Battery Modules, Industrial Backup Power
Material:
5052-H32 Aluminum Sheet
Tolerance:
±0.01 Mm
Processing:
CNC Laser Cutting, Press-Brake Forming, Assembly Fastening
Surface Treatment:
Brushed Finish, Powder Coating As Specified
Quality Control:
Cut-Feature Measurement, Hole-Pattern Verification, Bend-Dimension Inspection
Product Description

This custom 5052 aluminum battery tray is designed to support removable battery modules inside industrial AGV/AMR chassis, where the tray must align with chassis mounting rails and keep the battery secure during repeated movement and servicing.
The folded sidewalls help contain the module footprint, while the mounting slots provide adjustment during installation. The drawing should define battery dimensions, total loaded weight, fastener locations, cable-exit clearance and access needed for battery removal.
5052 aluminum offers good formability and corrosion resistance for this type of sheet-metal support. Sheet thickness, reinforcement and fastening details should be selected according to the battery mass, vibration environment and chassis design.

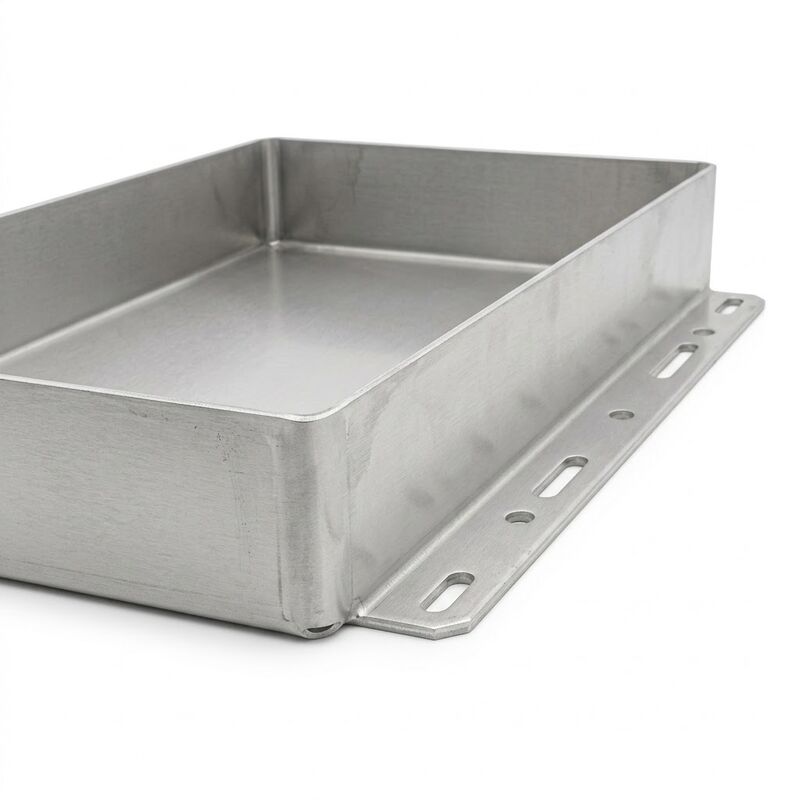

Custom 5052 aluminum battery trays with formed sidewalls and mounting slots for industrial mobile equipment

For more custom sheet metal trays and formed components, explore our Custom Sheet Metal Fabrication capabilities or Custom CNC Machining Services.
