Product Details
Highlight:
Material:
6061/7075 Aluminum Alloy
Precision Tolerance:
± 0.01mm
Surface Treatment:
Black Anodizing, Hard Anodizing, Sandblasting, Polishing
Processing Methods:
CNC Turning, Precision Milling, Drilling, Deep-hole Machining, Multi-axis Simultaneous Machining
Structure:
Circular Adjustment Bracket, Cylindrical Sleeve, L-shaped Vertical Bracket, Square Positioning Plate
Monthly Capacity:
10,000 Pieces
Material:
6061/7075 Aluminum Alloy
Precision Tolerance:
± 0.01mm
Surface Treatment:
Black Anodizing, Hard Anodizing, Sandblasting, Polishing
Processing Methods:
CNC Turning, Precision Milling, Drilling, Deep-hole Machining, Multi-axis Simultaneous Machining
Structure:
Circular Adjustment Bracket, Cylindrical Sleeve, L-shaped Vertical Bracket, Square Positioning Plate
Monthly Capacity:
10,000 Pieces
Product Description

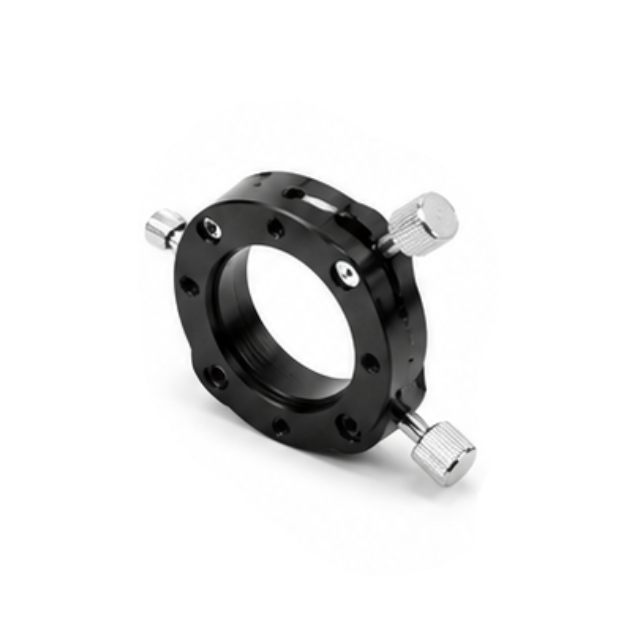

Aluminum Alloy Optical Mount Parts
Aluminum Alloy Optical Bracket Parts
Product Overview
This product is a black anodized aluminum alloy component assembly designed for optical experiments, laser alignment, and precision inspection. It is precision-machined from 6061-T6 aerospace-grade aluminum alloy using an integrated CNC process. The assembly comprises four functional modules—a ring adjustment mount, a cylindrical sleeve, an L-shaped vertical bracket, and a square positioning plate—which can be flexibly combined to construct a complete precision optical support system.
Each component undergoes precision machining and black anodizing to create a dense protective oxide layer, offering excellent wear resistance, corrosion resistance, and fingerprint resistance, ensuring stable long-term performance in demanding industrial environments such as those with high humidity or dust. The modular design allows for seamless assembly and expansion via standard threaded interfaces; with a precision of 0.01 mm, the system meets the requirements for high-accuracy optical alignment.
Technical Specifications
Surface Treatment Black anodizing, hard anodizing, sandblasting, polishing
Processing CNC turning, precision milling, drilling, deep-hole machining, multi-axis simultaneous machining
Quality Control 100% Full Inspection
Structure Circular adjustment bracket, cylindrical sleeve, L-shaped vertical bracket, square positioning plate
Precision ± 0.01mm Tolerance
Design Customized on demand
Product Material 6061/7075 aluminum alloy
Applicable Industries Optical platforms and precision experimental tables; machine vision and industrial camera systems; spectrometer, interferometer, and microscope modules; automated inspection fixtures; and auxiliary equipment for laser processing systems
Key Features
Product Advantages
Black anodized finish for wear and corrosion resistance; modular compatibility; lightweight and durable
Surface Treatment
Black anodizing, hard anodizing, sandblasting, precision polishing
Processing
CNC turning, precision milling, drilling, deep-hole machining, multi-axis simultaneous machining
Drawing Formats
2D (PDF/CAD), 3D (IGES/STEP)
Material Options
6061-T6 and 7075-T6 aluminum alloys
Quality Assurance
Tolerance controlled to 0.01; 100% inspection prior to shipment
Precision CNC machined aluminum optical bracket parts
Manufacturing Excellence
Shiye CNC Milling Parts are proudly manufactured in China, certified under ISO9001:2015, with precision tolerance of ±0.01mm and universal structure components essential for various industrial applications.
Applications
Designed to meet the highest standards of precision and quality, essential for applications where high accuracy and reliability are paramount. Widely used as critical components in numerous industries including:
  • Optical platforms and precision experimental tables
  • Machine vision and industrial camera systems
  • Spectrometer, interferometer, and microscope modules
  • Semiconductor wafer inspection equipment
  • Optical laboratories in research institutions and universities
  • Automated inspection fixtures
  • Auxiliary equipment for laser processing systems
Customization Services
We offer comprehensive product customization services with a minimum order quantity of just 1 piece, perfect for prototyping or limited runs.
  • Minimum Order: 1 piece
  • Monthly Capacity: 10,000 pieces
  • Accepted Formats: 2D (PDF/CAD), 3D (IGES/STEP)
  • Customized packaging available
Support & Services
  • Part replacement, repair, and calibration services
  • Technical support for installation and troubleshooting
  • Recommendation: Use genuine replacement parts
  • Regular inspection and cleaning recommended
Packing & Shipping
Each component is securely wrapped in anti-static and cushioning materials to prevent damage from shocks and vibrations.
  • Multiple shipping options: standard, expedited, and freight
  • All shipments are tracked from facility to location
  • Expert logistics partners ensure timely delivery
Frequently Asked Questions
Brand Name Shiye
Manufacturing Location China
Certifications ISO9001:2015
Minimum Order Quantity 1 piece
Delivery Time 7-14 days
Payment Methods L/C, D/A, D/P, T/T
Monthly Supply Capacity 10,000 pieces
